Key Features:
EN/DIN and New SAE rated working pressure
Flame resistant property of the cover compoud, MSHA approved
Smooth covery FRAS approved
OEM brand hose layline
Part No.
I.D.
O.D.
W.P
B.P
B.R
W.T
Dash
Inch
mm
mm
MPa
PSI
MPa
PSI
mm
kg/m
2SC-04
1/4″
6.4
14.2
40.0
5800
160
23200
75
0.296
2SC-05
5/16″
7.9
16.0
35.0
5075
140
20300
85
0.327
2SC-06
3/8″
9.5
18.3
33.0
4785
132
19140
90
0.398
2SC-08
1/2″
12.7
21.5
27.5
3988
110
15950
130
0.500
2SC-10
5/8″
15.9
24.7
25.0
3625
100
14500
170
0.632
2SC-12
3/4″
19.1
28.6
21.5
3118
86
12470
200
0.738
2SC-16
1″
25.4
36.6
16.2
2393
66
9570
250
1.034

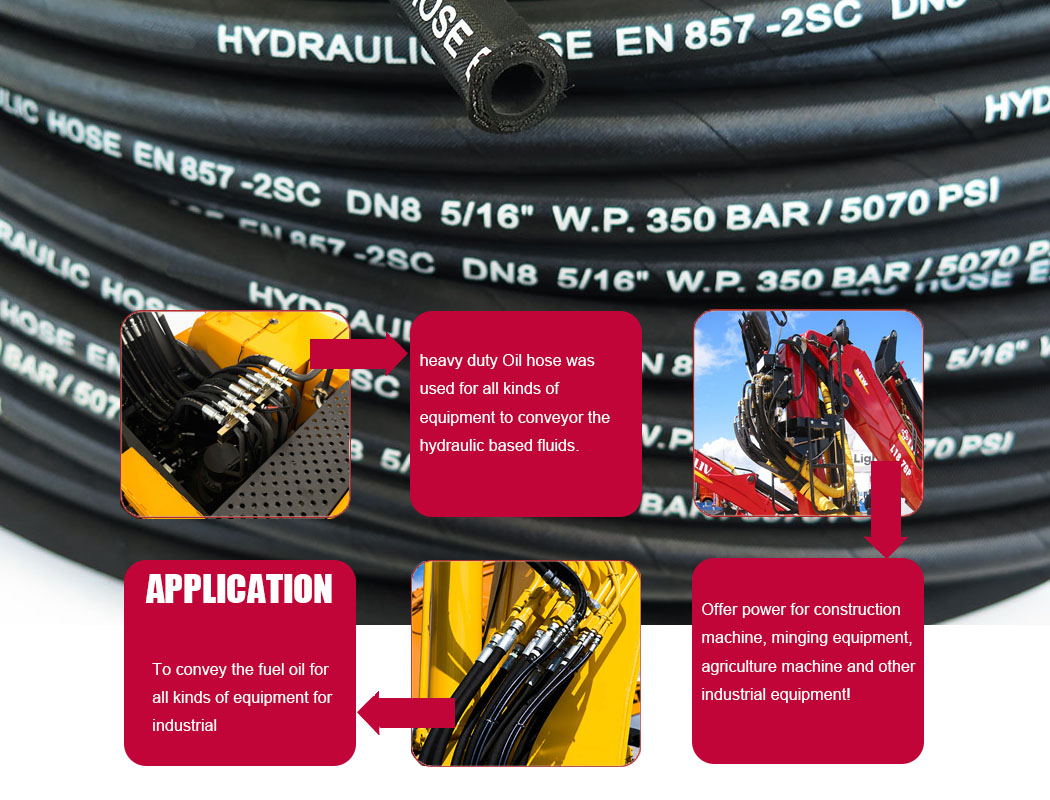

Application:
Suitable for conveyor low/medium pressure service with tight bends of oil/water based hydraulic fluids.
EN857-2SC hydraulic hose is similar to EN857-1SC hydraulic hose in application. It is also used for petroleum-based hydraulic oil delivery at the temperature range of -40 °C to +100 °C.
ulic oil delivery at the temperature range of -40 °C to +100 °C.
Our Company:
We are market-leading hydraulic hose manufacturer from China.
Our hydraulic hose can deliver high pressure fluids and stand the hardest working environments.
Each of our hydraulic hose is in compliance with strict industry standards such as SAE 100 and DIN.
Our hoses can fit in all kinds of adapters and fittings. They can be used with petroleum and water-based hydraulic fluids including gasoline, diesel fuels, mineral oils, glycol, lubricating oils, etc.
Hydraulic hose has a wide range of applications from agriculture to heavy equipment operations.
We can also produce hydraulic assembly for our customers.
The finished assemblies are lengths of hydraulic hose with crimp fittings pre-attached. We can customize the type of hose, length and fittings to make the perfect assembly for your project.
We have a large hydraulic hose range, which can meet your different applications.
SAE100 R1AT/EN 853 1SN (ISO 1436 Type R1AT, SAE J517 100R1AT/ISO 1436 1SN EN853 1SN, SAE J517 100R1S )
SAE100 R2AT/EN853 2SN(ISO 1436 Type R2AT, SAE J517 100R2AT/ISO 1436 2SN EN853 2SN, SAE J517 100R2S )
DIN 20023/EN 856 4SP(ISO 3862 4SP/ EN856 4SP )
DIN 20023/EN 856 4SH (ISO 3862 4SH/ EN856 4SH )
SAE100 R12 (ISO 3862 R12/ EN856 R12,SAE J517 100R12 )
SAE100 R13 (ISO 3862 R13/ EN856 R13,SAE J517 100R13 )
SAE100 R15 (ISO 3862 R15/ EN856 R15,SAE J517 100R15 )
EN 857 1SC (ISO 11237 1SC/ EN857 1SC )
EN857 2SC(ISO 11237 2SC/ EN857 1SC,SAE J517 100R16S )
SAE100 R16 (ISO 11237 R16/SAE J517 100R16 )
SAE100 R17 (ISO 11237 R17/SAE J517 100R17 )
SAE100 R3 / EN 854 2TE(ISO 4079 R3/EN854 R3/SAE J517 100R3 )
SAE100 R6 / EN 854 1TE(ISO 4079 R6/EN854 R6/SAE J517 100R6 )
SAE100 R5 (SAE J517100R5/ DOT FMWSS106)
SAE100 R4 (SAE J517 R4)
SAE100 R14 (SAE J517 R14)
SAE100 R7 (SAE J517 R8/DIN EN855 R8)
SAE100 R8 (SAE J517 R8/DIN EN855 R8)
