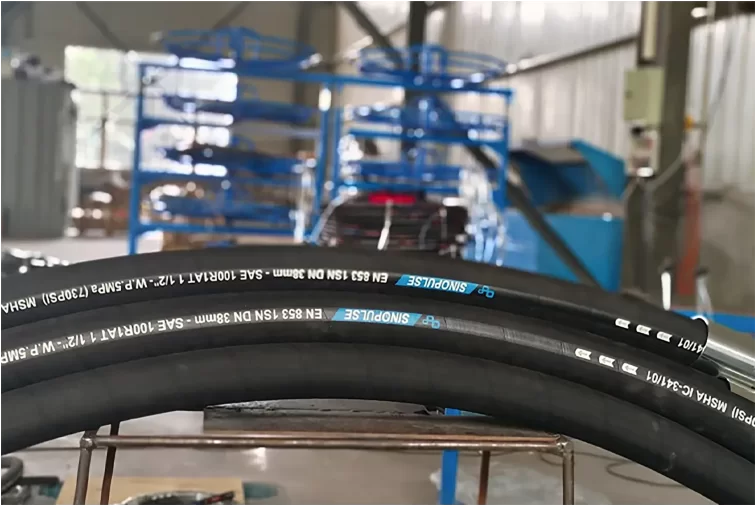

SINOPULSE hoses adhere to SAE 100 and DIN EN international standards,ensuring seamless integration into equipment across the globe.SAE 100 Series:Our range spans from the R1 one steel wire braided hydraulic hoses,perfect for medium-pressure systems in agriculture and light machinery,to the high-performance R14 PTFE hoses.Withstanding temperatures up to 260°C,the R14 series is a top choice for high-temperature and chemically aggressive environments.The R16 and R17 Compact Wire Braided models offer remarkable pressure resistance of up to 6000 PSI,making them ideal for compact yet high-demand hydraulic setups.DIN EN 854/857:For European markets,our 3 TE Textile Reinforced Hoses and 1 SC Compact One Wire Braided Hoses provide reliable,compliant solutions that meet strict safety and performance requirements.EN 856 4 sh and 4 sp hysraulic hose are the first choice for solving high-pressure and high-pulse working conditions and is an ideal choice for heavy-duty applications.

Built to endure extreme conditions,our hoses leverage advanced materials:Wire Braided/Spiral:Reinforced with multiple layers of steel wire,these hoses can handle pressures of up to 10,000 PSI,making them the go-to option for heavy-duty applications in construction,mining,and hydraulic presses.Thermoplastic(R7/R8):Lightweight yet robust,these hoses resist ozone,weathering,and common hydraulic fluids,ensuring longevity in mobile hydraulics and industrial automation systems.PTFE:The inner PTFE layer in our R14 series offers exceptional resistance to chemicals,UV radiation,and extreme temperatures,making it suitable for chemical processing and marine industries.

At SINOPULSE,we understand that one size doesn't fit all.Our custom hydraulic hoses service provides:Bespoke Sizing:With diameters ranging from¼" to 4"and customizable lengths,we can accommodate any equipment layout.Material Combinations:Mix and match reinforcement layers and inner/outer coatings,such as NR,EPDM,or PVC,to ensure compatibility with specific fluids and environments.End Fittings:A wide selection of connectors,including JIC,BSP,and NPT,are pre-assembled to ensure quick installation and leak-free performance.

Our hydraulic hose crimping machines,including the high-performance SNP-250 A and SNP-32 D-plus models,are engineered for accuracy and efficiency.Equipped with intelligent digital control systems,these machines automatically adjust crimping pressure and diameter based on hose and fitting specifications,eliminating guesswork and ensuring consistent,leak-free results.With a crimping range of 6-51 mm,they handle diverse hose sizes,from small-bore lines to heavy-duty industrial applications.Plus,the intuitive touchscreen interface simplifies operation,allowing operators to switch between tasks with ease.

SINOPULSE hose cutting machines,such as the SNP-C20,deliver pinpoint precision with an accuracy tolerance of±0.5 mm.Whether you need straight cuts,angled trims,or custom lengths,our automated cutting systems use sharp carbide blades and high-speed motors to slice through rubber,thermoplastic,and wire-reinforced hoses without fraying or distortion.The built-in measuring sensors and programmable length settings enable high-volume production while minimizing material waste,optimizing your bottom line.

Beyond crimping and cutting,SINOPULSE offers a full suite of hose machinery to support your operations:Hose Skiving Machines:Prepare hoses for crimping by precisely removing outer layers,ensuring a secure fit and enhanced joint strength.Hydraulic Hose Testing Machines:Rigorously test hoses for burst pressure,impulse resistance,and leak detection,guaranteeing compliance with international standards like SAE and DIN.
