Key Features:
EN/DIN and New SAE rated working pressure

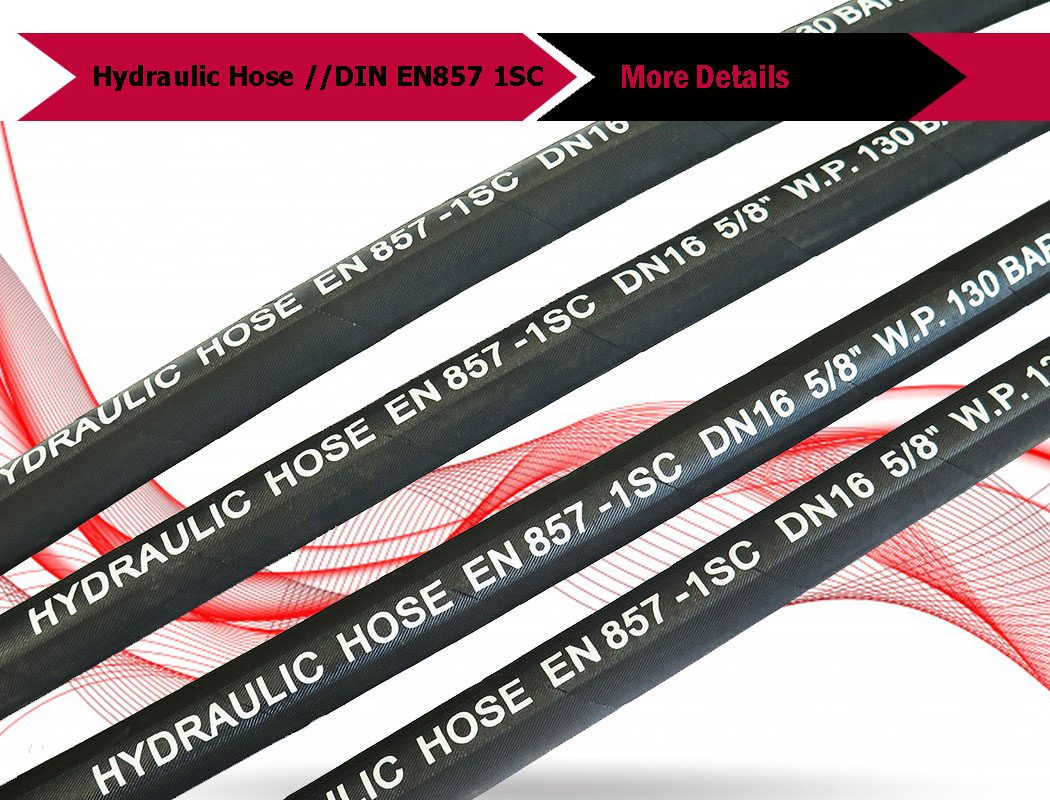

Hydraulic hose EN857 1SC
Flame resistant property of the cover compoud
MSHA and ISO approved
Smooth covery FRAS approved
OEM layline
Part No.
I.D.
O.D.
W.P
B.P
B.R
W.T
Dash
Inch
mm
mm
MPa
PSI
MPa
PSI
mm
kg/m
1SC-04
1/4″
6.4
13.5
22.5
3263
90
13050
75
0.173
1SC-05
5/16″
7.9
14.5
21.5
3118
85
12325
85
0.194
1SC-06
3/8″
9.5
16.9
18.0
2610
72
10440
90
0.244
1SC-08
1/2″
12.7
20.4
16.0
2320
64
9280
130
0.328
1SC-10
5/8″
15.9
23.0
13.0
1885
52
7540
150
0.416
1SC-12
3/4″
19.1
26.7
10.5
1523
42
6090
180
0.500
1SC-16
1″
25.4
34.9
8.7
1262
35.2
5075
230
0.713
Application:
Suitable for conveyor low/medium pressure service with tight bends of oil/water based hydraulic fluids.
It is almost similar to
EN 853 1SN steel wire reinforced hydraulic hosein structure. And the difference is that it has smaller outside diameters, which solves the problem of the compact and narrow installation space of some equipment piping. It is suitable for high pressure working conditions for its high tensile steel wire reinforcement.
Our Company:
Sinopulse is a professional hydraulic hose manufacturer who has advanced equipment and very strict quality control.
We offer hydraulic hoses that can deliver hydraulic fluids and stand the hardest working environment. The hoses are designed to perform in both high and low pressures, and are also very suitable for all kinds of applications.
All our hydraulic hoses meet stringent industry standards such as SAE 100 and DIN. And all have ISO and MSHA certificates.
Our reinforced hoses can fit a wide variety of adapters and fittings.
Our hydraulic hose is designed for being used with petroleum and water-based hydraulic fluids. They can handle gasoline, diesel fuels, mineral oils, glycol, lubricating oils and so on.
Hydraulic hoses handle high pressures in a wide range of applications, from agriculture manufacturing to a variety of heavy equipment operations.
We also make hydraulic assembly for our customers, which are hydraulic hose with crimp fittings pre-attached. Customize hose type, length,and fittings to make the perfect assembly for your project.
We have a large hydraulic hose range, which can satisfy your different applications.
