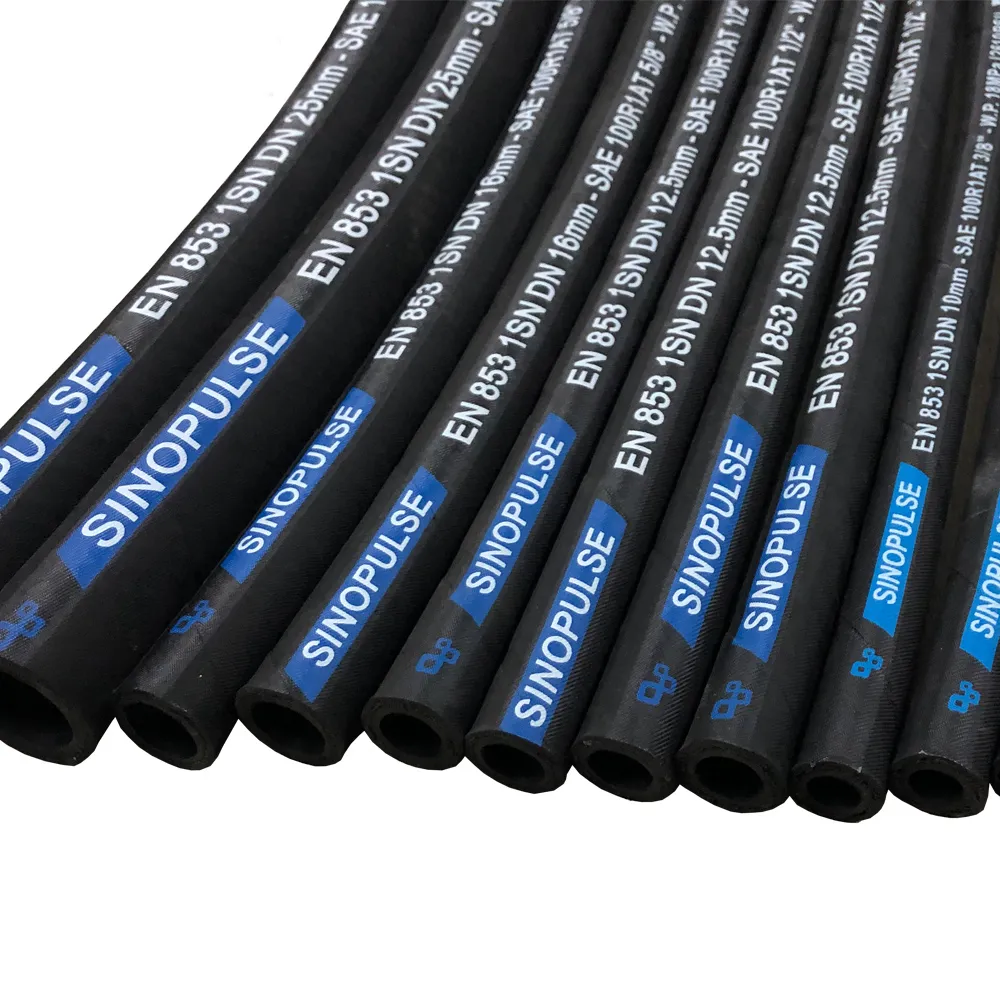

SAE 100 R1 AT/DIN EN853 1SN One steel wire braided hydraulic hose
The SAE 100 R1 AT hydraulic hose is a single-ply, wire-reinforced, high-pressure hydraulic hose. It is a single-wire braid hydraulic hose, which means it has a single layer of wire reinforcement braided around the inner tube. It is manufactured in accordance with the Society of Automotive Engineers (SAE) Standard for medium- or high-pressure rubber hose for hydraulic systems.
In addition, it meets or exceeds the requirements of SAE 100R1AT and EN853 1SN, ensuring compliance with industry standards. For operating pressure of up to 2320 PSI, this hose provides reliable performance and durability in demanding environments. Trust SINOPULSE to meet your hydraulic hose needs.
The specification of EN 853 1SN/SAE 100 R1 steel wire reinforced hydraulic hosePart No.
I.D.
O.D.
W.P
B.P
B.R
W.T
Dash
Inch
mm
mm
MPa
PSI
MPa
PSI
mm
kg/m
1SN-03
3/16″
4.8
11.5
25.0
3625
100
14500
90
0.210
1SN-04
1/4″
6.4
13.2
22.5
3263
90
13050
100
0.250
1SN-05
5/16″
7.9
14.7
21.5
3118
85
12325
115
0.311
1SN-06
3/8″
9.5
17.1
18.0
2610
72
10440
130
0.360
1SN-08
1/2″
12.7
20.4
16.0
2320
64
9280
180
0.451
1SN-10
5/8″
15.9
23.7
13.0
1885
52
7540
205
0.519
1SN-12
3/4″
19.1
27.3
10.5
1523
42
6090
240
0.651
1SN-16
1″
25.4
36.0
8.7
1262
35
5075
300
0.909
1SN-20
1.1/4″
31.8
42.5
6.3
914
25
3654
420
1.300
1SN-24
1.1/2″
38.1
48.5
5.0
725
20
2900
500
1.690
1SN-32
2″
50.8
62.0
4.0
580
16
2320
630
1.891
EN 853 1SN/SAE 100 R1 Hydraulic Hose ApplicationsFor conveying medium- to high-pressure oil-based or water-based hydraulic fluids.Industrial machinery: SAE 100R1 hoses are commonly used in industrial machinery such as hydraulic presses, machine tools, and conveying systems. These hoses help convey hydraulic fluids, operate various components, and ensure smooth, reliable operation.
Construction equipment: Hydraulic systems are widely used in construction machinery such as excavators, loaders, and cranes, and SAE 100R1 hoses provide the hydraulic power required to control the movement of different components such as booms, buckets, and outriggers.
Agricultural machinery: Tractors, harvesters, and other agricultural equipment rely heavily on hydraulic systems for functions such as lifting, steering, and operating attachments, and SAE 100R1 hoses are suitable for conveying hydraulic fluids in these applications.
Automotive: SAE 100R1 hoses are also used in the automotive industry for power steering, braking, and suspension systems. These hoses aid in the delivery of hydraulic fluid to ensure proper functioning and control of these systems.

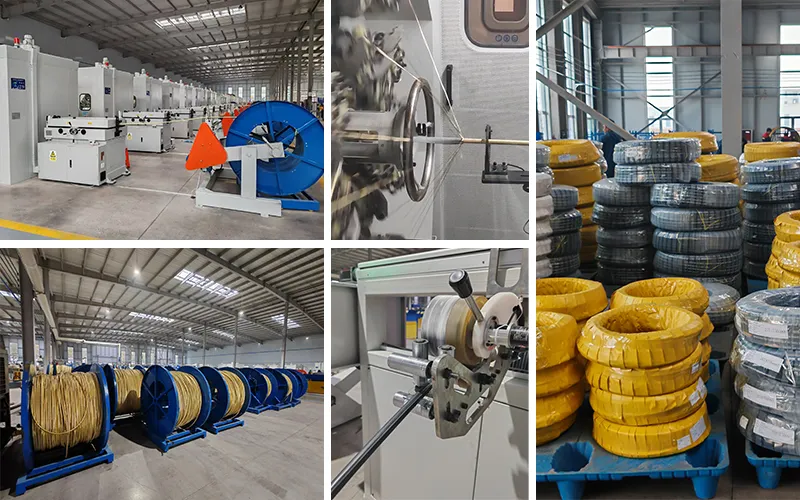

Why choose Sinopulse Company?Sinopulse is a market-leading
hydraulic hose manufacturerand professional exporter.We offer hydraulic hoses that can withstand the hardest working environment.
Our hydraulic hoses are designed to perform in both high and low pressures, and be suitable for a variety of applications.
Our hydraulic hoses are all in compliance with stringent industry standards such as SAE 100 and DIN, are also approved by ISO and MSHA.
Our steel wire reinforced hoses can fit in a wide range of adapters and fittings.
Hydraulic hose can not only deliver petroleum and water based hydraulic fluids, but can also handle gasoline, diesel fuel, mineral oil, glycol, lubricating oil and so on.
Hydraulic hoses handle high pressures in a wide range of fluid-power applications, from agriculture and manufacturing to all variety of heavy equipment operations.

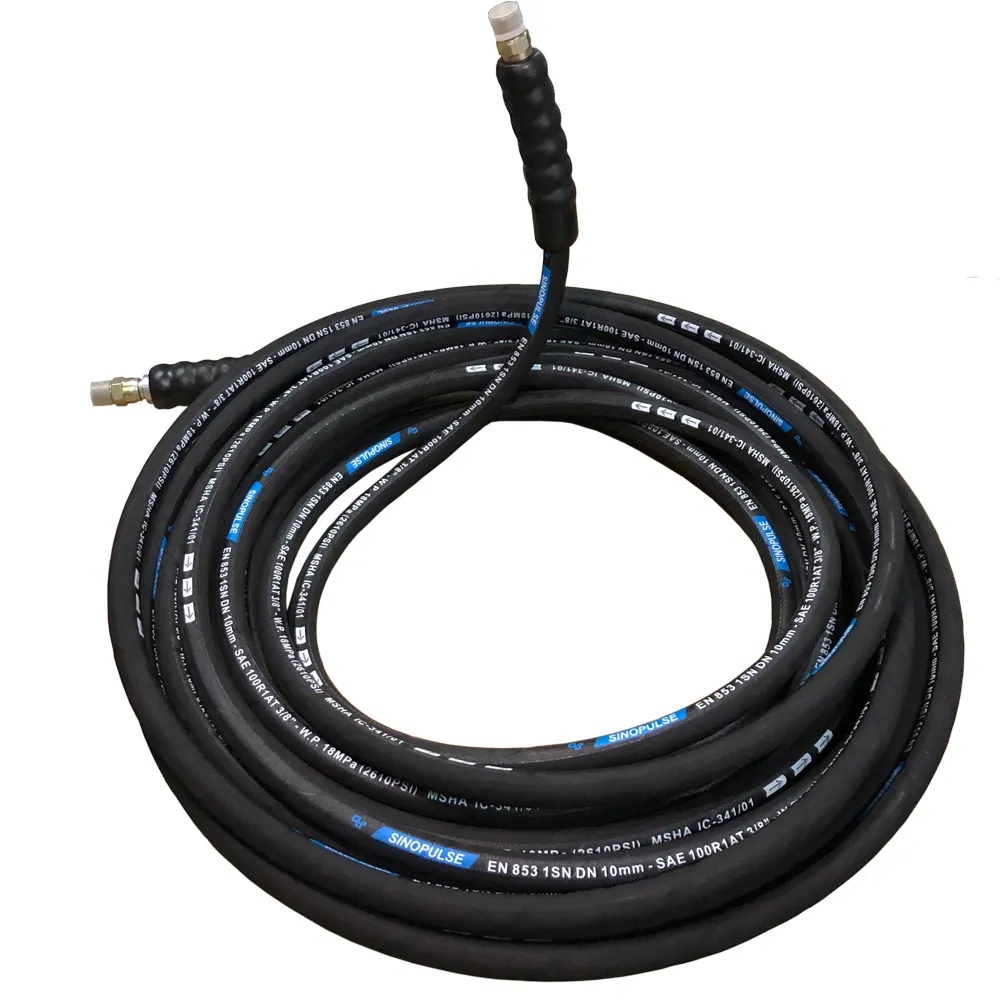

We can also make hydraulic hose assemblies for customers.
The finished assemblies are hydraulic hoses with crimp fittings pre-attached.
We support customizing the type of hose, length and fittings to create the perfect assembly for your project.
